MODEL 5SCM7
APPLICATION
-Suitable for use with clean water with a sand content
of no more than 150g/m3.
-Because of their high efficiency and
reliability,they are suitable for use in domestic,civil and industrial
applications such as for the distribution of water in combination with pressure
tanks,for irrigation,for washing plants and for pressure boosting in
fire-fighting sets,etc.

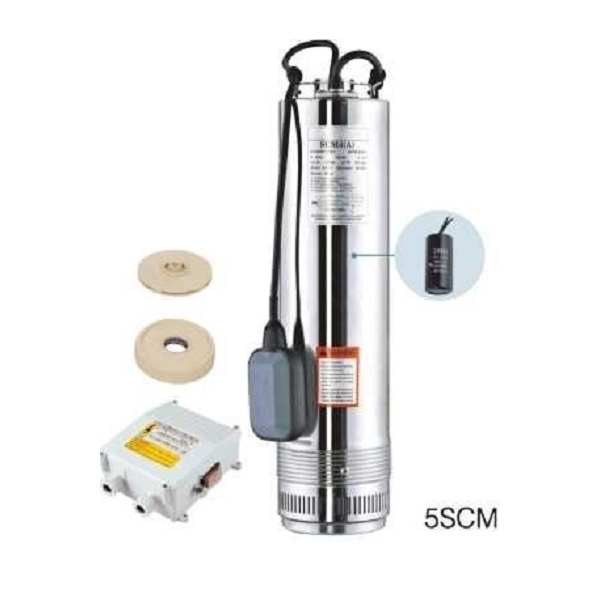

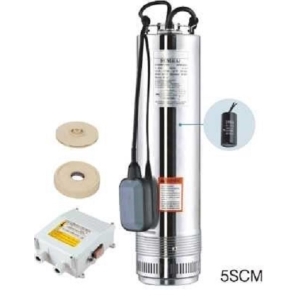

MOTOR AND PUMP
-Rewindable motor
-Pump with
start control box or digital auto-control box
-It’s available to equip with
floating switch
-Pump and motor external casing:AISI 304 ss
-Shaft:AISI
304 SS-ASTM 5140
-Bottom support:AISI 304 ss
-Delivery casing and suction
lantern:AISI 304 ss
-Top chock: 1.AISI 304 ss 2.Cast-iron ASTM
NO.30
-Mechanical seakGraphite-Ceramic
-Diffuser and
impeller:Plastic.PPO(5SCM)
-Seal lubricant oik Oil for food machinery and
pharmaceutic use
OPERATING CONDITIONS
-Maximum fluid temperature up to
+35°C
-Maximum sand contents.25%

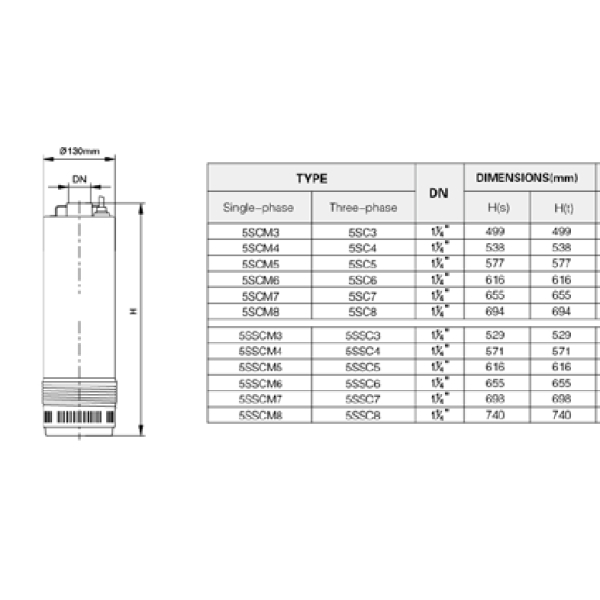

-Minimum well diameter:13Omm
-Spout: 1 1/4 "
Dry operation of the pump causes damage
Installation must be vertical.
