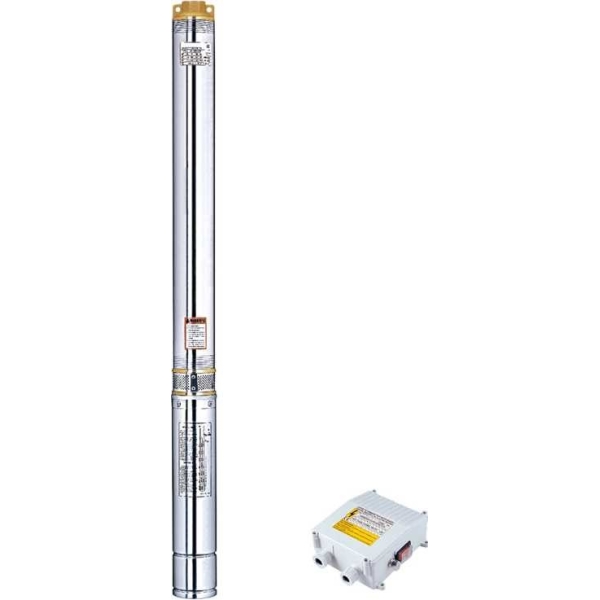

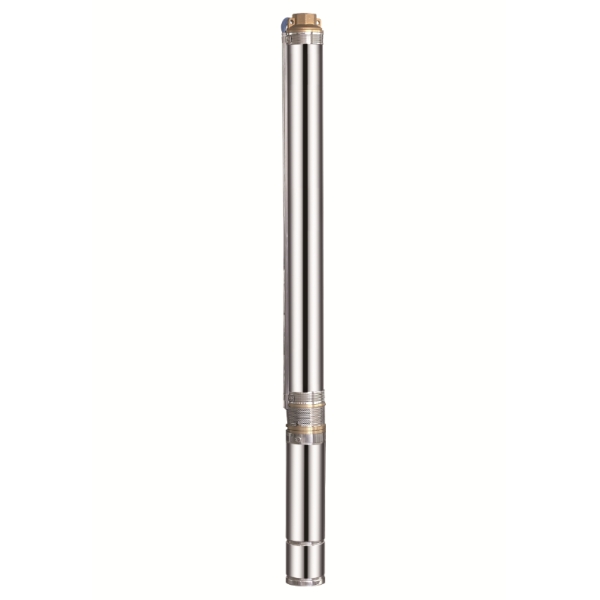

EBP series of pumps are manufactured using high quality materials and are designed to deliver years of dependable service. Pumps are on the floating impeller design which reduces starting torque requirements and reduces the effects of sand in the water.It's used in water supply from wells or reserviors for domestic,agriculture,commercial and industry purposes.
Applications:
·For water supply from wells or reservoirs
·For domestic use,for civil and industrial applications
·For garden use and irrigation
Operating conditions:
·Max.fluid temperature up to +35°C
·Max.sand content:0.25%
·Max.imemersion: +80 m
·Min.well diameter:4"
Pump
·POM impeller
·AISI 304 shaft
·AISI 304 pump body
·Pumps are designed by casing stressed
·Max.liquid temperature: +40 °C
·Seal lubricant oil for food machinery and pharmaceutic use
Motor
·Copper winding
·Built-in thermal protector for single phase motor
·Rewindable motor or full obturated screen motor
·Three phase:380V-415V/50Hz
·Single phase:220V-240V/50Hz
·Curve tolerance according to ISO 9906
Features
Power: 1HP
Voltage: 230V - 50HZ
Spout: 1 1/4 "
Maximum head: 55m
Maximum flow: 3.6 m3 / h
Features boot board and 1 meter cable
Insulation class F, Protection IP68
Maximum content of sand: 0.25%
Maximum water temperature: 40C
Dry operation of the pump causes damage
Installation must be vertical.
