SUITABLE for transferring liquids of low viscosity, non-inflammable and
non-explosive, not containing solid particles or fibers
• Water supply
& drainage for high-rise buildings, filtration and transfer at waterworks,
pressure boosting in main pipe
• Washing and cleaning systems, boiler
feeding, cooling water circulation, water treatment systems, auxiliary system,
support equipment
• Ultra-filtration systems, reverse-osmosis systems,
distillation systems, separators, swimming pools
• Agricultural
irrigation: sprinkler irrigation, drip-feed irrigation
• Food &
beverage industry
• Fire-fighting system
Operating
Conditions
• Low viscosity, non-inflammable and non-explosive liquids
not containing solid particles or fibers. The liquids must not chemically attack
the pump materials. When pumping liquids with a density or viscosity is higher
than that of water, a motor with a higher output power rating shall be
used.
• Liquid temperature: -20°C~+120°C
• Flow ranges: 0.7-240
m3/h
• Liquid pH value: 4-10
• Max. ambient temperature:
+40°C)
• Max. operation pressure: 33 bar
• Altitude: up to 1000
m

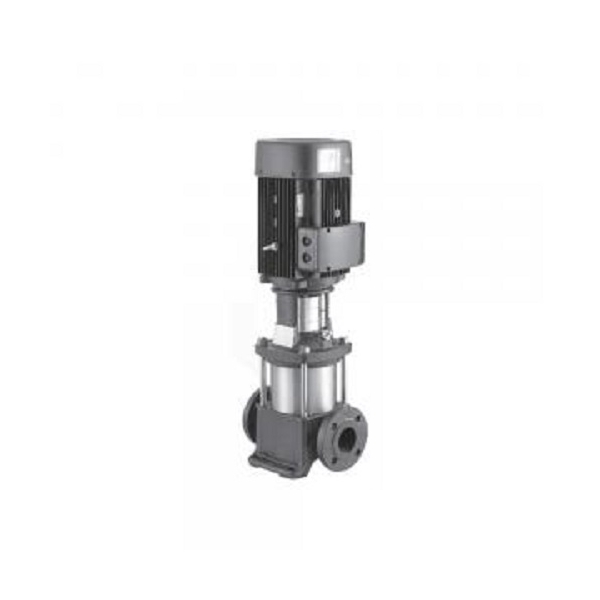

EVR
Ambient Temperature
Max. ambient temperature: +40°C . Ambient
temperature above 40°C or installation at altitude of more than 1000 meters
above sea level require the use of an oversize motor. Because of low air density
and poor cooling effects, the motor output power P2 will be decreased.
.
Motor
• IE 2 motor (IE 3 motor
optional)
• Totally enclosed & fan-cooled
• Protection
class: IP55
• Standard voltage: 50Hz 1 x 220V/3 x 380V
